916mm Bundled Conductor Stringing Pulley Blocks For Overhead Line
Wheels ACSR Conductor Large Diameter Pulley Block

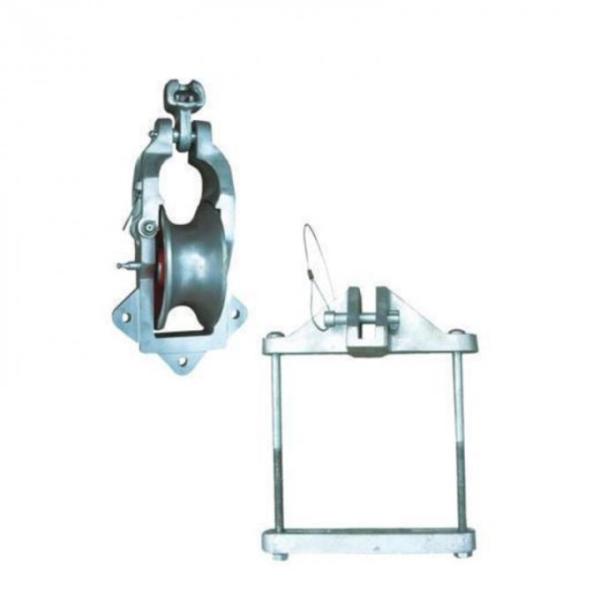

Stringing Block for ACSR line stringing construction has the galvanized steel frame, It could use for releasing large diameter conductors,like ACSR 350--500KV voltage line in transmission line with the very smoothly and durable Nylon wheels.
Application and Features
Five Nylon Wheels Diameter 916mm Bundled Conductor Pulley For Overhead Line
Large diameter Stringing Block And Tackle is used to release the wire in the overhead transmission line.
And it can be used for single conductor, double split wire, four split wire, six split wire and so on.
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
| Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Feature |
| 10151 | SHDN916 | 1 | 50 | 51 | MC nylon sheave |
| 10152 | SHSQN916 | 3 | 75 | 120 |
| 10153 | SHWQN916 | 5 | 150 | 200 |
| Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Features |
| 10165 | SHDN1040 | 1 | 50 | 60 | MC nylon sheave |
| 10166 | SHSQN1040 | 3 | 105 | 200 | Middle: MC nylon sheave Conductor: rubber coated nylon sheave |
| 10167 | SHWQN1040 | 5 | 180 | 330 |
| Item number | Model | Number of sheave | Rated load (kN) | Weight (kg) | Feature |
| 10168-1 | SHDN1160 | 1 | 60 | 65 | Middle :MC nylon sheave |
| 10168-2 | SHSQNK1160 | 3 | 120 | 220 | Middle :MC nylon sheave Conductor: rubber lined MC nylon sheave |
